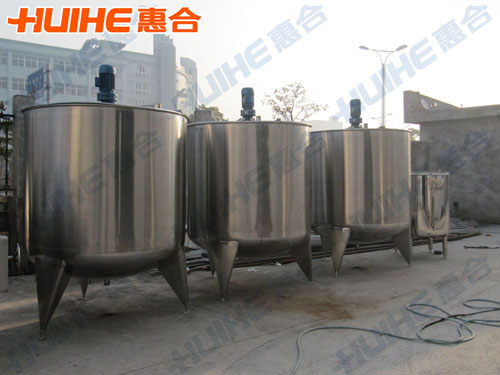

Natural Gas Cold and Hot Urn

Natural gas cold and hot urn has the characteristics such as energy-saving, noise reduction, corrosion resistance, strong production capacity, easy cleaning. It is a kind of stainless steel tank and can be used as heating, cooling, heat preservation, sterilization or slurry must be stainless steel storage tank, especially suitable for the pasteurized milk sterilization and insulation, and is the necessary equipment in ice cream production line.

Structure of Natural Gas Cold and Hot Urn

Usages of Natural Gas Cold and Hot Urn

The cold and hot urn is widely used in the dairy industry, food, pharmaceutical, chemical, beverage and other industrial departments of material heating, stirring mixing, cooling, heat preservation etc.

Characteristics of Natural Gas Cold and Hot Urn

1、 Stainless steel material quality is reliable, long service life.
2、 The tank is made of stainless steel plate materials, surface polishing, can protect the liquid from the pollution, protect the cold and hot urn from corrosive damage, can effective heat preservation;
3、 Good isolation, and loading and unloading of convenient, easy to transport;
4、 Middle jacket is made of stainless steel plate, reinforcing ring screw device, the cold water from the bottom up (no pressure), achieve the goal of best rise and cooling;
5、 Stainless steel plate thrown into scale pattern into the insulation layer, thermal insulation layer with polyurethane or glass cotton and temperature of the outside world, to achieve the effect of heat preservation;
6、 With cycloid pin gear planetary reducer, fixed on the bracket in the beam, gear wheel connecting shaft and impeller, using loop connection, easy disassembling and cleaning;
7、 Install beam thermometer, in a medium reaches the lowest position, make the liquid used minimum position can also indicate the temperature, achieve sterilization and aging.

Technical Parameters of Natural Gas Cold and Hot Urn

Volume	300L	400L	500L	600L	800L	1000L	1500L	2000L	3000L
Body diameter（mm）	Φ800	Φ800	Φ900	Φ1000	Φ1000	Φ1000	Φ1200	Φ1300	Φ1600
Body height（mm）	600	800	800	800	1000	1220	1220	1500	1500
Motor power（kw）	0.55	0.55	0.55	0.55	0.55	0.75	1.5	2.2	3
Stirring speed(rpm)	36r/min
Working pressure	≤0.09Mpa
Working temperature	＜100℃
Accessories	Thermometer、safety valve、pressure gauge

Notes:

1. The technical parameters of cold and hot urn is standard configuration. Any specific requirements, please point out.

2. The jacket working pressure≤ 0.09Mpa also can be made according to customers’ requirements.

3. The process parameters that need provided when choosing the cold and hot tank: the nature of material, working pressure, temperature, specific requirements, etc.
